Brushless DC Safety Sliding Glass Door Motor with High Power Low Noise
Technical details:
Motor type: brushless DC motor
Power supply / Output voltage: AC220V/DC24V
Rated power: 75W
Motor speed: 2500RPM
Output speed: 150RPM
Service life: 300million cycles
Temperature range: -10 ℃ to 55 ℃
Specifications:
| Type | Brushless |
| Voltage | 24VDC |
| Power | 100W |
| No-load speed | 150rpm |
| On-load speed | 120rpm |
| Noise level | ≤50dB |
| Protection class | IP44 |
| Gear Ratio | 1:15 |
| Weight | 2.5 kg |
| Lifetime | 3million cycles,10years |
| Application | Automatic Sliding door |
Motor Outline drawings:
Competitive Advantage:
1. LOW NOISE than brushed motor, because of its precise manufacturing technology and direct driving design.
2. Brushless motors have LONG LIFE than brushed motors (more than 3,000,000 cycles), with 10years warranty.
3. Small size and Excellent Design, high-strength wear-resistant gears and high processing makes it more stable, quiet, longer life, higher efficiency, larger torque.
4. Leading technologies, multi- functions, dependable performance while being cost efficient.
5. Widely used for Automatic Doors: including Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, Hospital Door, be installed in the hotels, airports, office buildings, shopping malls, hospitals etc.
Applications:
This Heavy duty automatic Sliding door round motor type Brushless DC Motor can be used on any kinds of Automatic doors: Sliding Door, Swing Door, Curved Door, Folding Door, Hermetical Door, Telescopic Door, Panic Door, Revolving Door, and Hospital Door etc. Which are widely used in Hotel, Hospital, Shopping Mall, Bank, Commercial office building and etc.

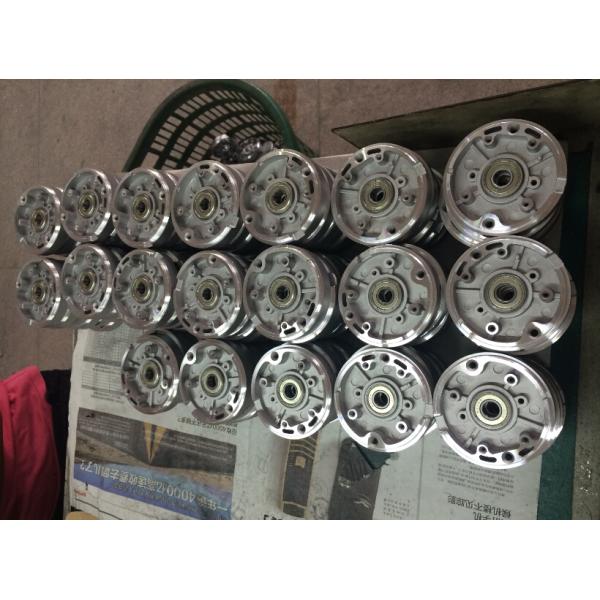

Product Details:
Raw Materials:
Production Line:
